HDPE Wear Plates Manufacturer for Industrial Liners | Mingda

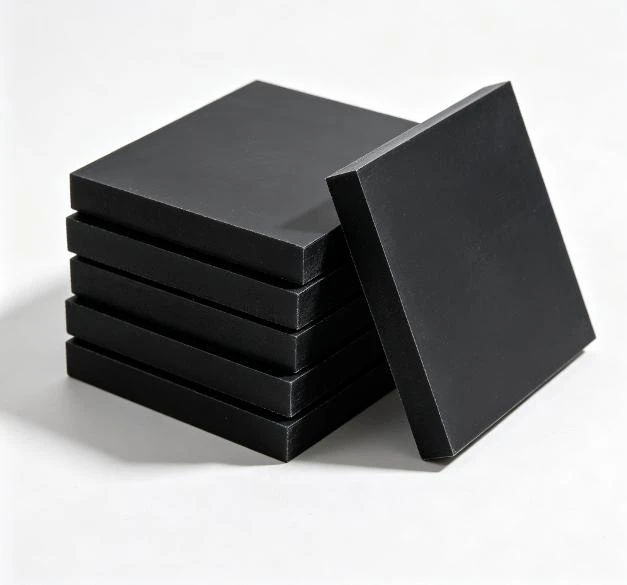

Mingda manufactures high-density polyethylene (HDPE) sheets, cut-to-size wear plates, and custom machined liners for chutes, hoppers, sliding surfaces, and material handling equipment.
With 30+ years of polyethylene production, a 10,000 m² facility, and 10 continuous production lines, Mingda delivers standard sheets, precision-cut plates, and CNC-machined components for global buyers.
Why Choose Mingda
30+ Years of Manufacturing Experience
Proven expertise in resin selection, thermal forming, structural stress control, and strict tolerance management.
High-Capacity Supply
10 dedicated extrusion lines handle bulk orders and customized batch orders efficiently.
Precision Customization
In-house CNC milling, drilling, routing, and profiling match exact equipment installation layouts.
Global Trade Support
Handles international export packaging, customs compliance, and streamlined shipment coordination.
Technical Specifications
|
Property |
Test Method |
Typical Value |
|
Density (23°C) |
ASTM D1505 |
0.96–0.98 g/cm³ |
|
Hardness |
ASTM D2240 |
65–70 Shore D |
|
Tensile Strength at Yield |
ASTM D638 |
21 MPa |
|
Tensile Strength at Break |
ASTM D638 |
35 MPa |
|
Elongation at Break |
ASTM D638 |
>800% |
|
Flexural Modulus |
ASTM D790 |
1,500 MPa |
|
Izod Impact Strength |
ASTM D256 |
>150 J/m |
|
Vicat Softening Point |
ASTM D1525 |
150°C |
|
Water Absorption |
ASTM D570 |
Nil |
Low Coefficient of Friction: Promotes continuous bulk material flow, preventing dynamic sticking, bridging, and material accumulation in chutes and hoppers.
Corrosion & Chemical Resistance: Resists degradation from acids, alkalis, salts, and aqueous solutions, making it ideal for wet processing plants.
Zero Water Absorption: Prevents moisture intake, protecting panels from swelling, warping, or freezing during cold-weather outdoor exposure.
Lightweight & Easy Installation: Weighing roughly 1/8th of carbon steel, HDPE plates significantly lower transportation costs and allow safer, faster manual handling during maintenance overhauls.
Chutes & Transfer Points: Line primary and secondary chutes to maintain continuous bulk material velocity and protect metal walls from sliding friction.
Hoppers & Silos: Applied as full or partial wall coverings to prevent material hang-ups in agricultural, chemical, and mineral storage units.
Conveyors & Guides: Machined into wear strips, side guide rails, and sliding plates to minimize wear on moving conveyor belts and chains.
Equipment Protection Liners: Installed as protective barrier panels on agricultural machinery, mining equipment, and concrete batching systems.
Application Selection Guidelines
Material Flow & Particle Size
Evaluate bulk density, particle size distribution, and drop height. High-impact drop zones may require thicker plates or specialized backing structures.
Chemical & Thermal Exposure
Verify specific chemical concentrations, continuous operating temperatures, and washdown frequency prior to material approval.
Replacement Liner Matching
When replacing existing equipment liners, provide original plate dimensions, mounting hole center-lines, and bolt profiles for accurate CNC reproduction.
Custom Machining & Fabrication Services
We transform raw extruded sheets into ready-to-install finished components using multi-axis CNC routers.
Cut-to-Size Panels
Precision sizing according to customer-specified length and width tolerances.
Custom Hole & Slot Drilling
Precision machining of straight holes, countersunk holes, counterbored bolt patterns, and expansion slots for secure mechanical fastening.
Complex Geometry Shaping
Custom milling of irregular outlines, radius corners, angled edges, and 3D shapes direct from CAD drawings or physical samples.
Custom Order Workflow
Specification Review
Technical evaluation of material grades, working parameters, project quantities, and delivery schedules.
01
CAD Drawing Confirmation
Verification of customer drawings, bolt hole layouts, bevels, and tolerances before machining begins.
02
Precision Fabrication
Extrusion, CNC cutting, routing, drilling, and deburring executed according to the approved engineering file.
03
Quality Inspection
Comprehensive dimensional verification, surface check, bolt-pattern fitment test, and material property auditing.
04
Protective Packaging
Secure stacking, edge wrapping, and palletization to protect machined features during international freight transit.
05
Quality Assurance
Every production batch undergoes systematic quality control to ensure full compliance with international standards and customer drawings.
Dimensional Auditing
Precision measuring of thickness uniformity, diagonal squareness, hole pitch distances, and countersink depths.
Surface Integrity Checks
Inspection for planarity, surface smoothness, edge finish, and absence of internal voids or stress cracks.
Traceable Documentation
Mill test certificates, material batch tracking, and dimensional inspection reports are available upon request for every shipment.
Our Honor
FAQ
Request a Technical Quote
Provide your project details to receive a full material quote and technical evaluation:
Required Specifications: Length, Width, Thickness, Quantity, Color, Destination Port.
Technical Attachments: Engineering drawings, dimensional sketches, or sample measurements.
Contact Mingda's engineering team today to receive a detailed quote and material recommendation.
